Metal Copper Shunt Resistor MMS1206

Resistor：Metal Copper Shunt Resistor MMS1206

Part Number：MMS1206

Brand：Microhm

Feature：0.3mΩ~1mΩ 2W ±1% 150ppm/℃

Description： 2W up to 81A at 0.3 mΩ, lead free, RoHs compliant for global applications and halogen free...

Online service Specification

Product Attributes
  • Resistance Range：0.3mΩ~1mΩ Power Rating：2W
  • Tolerance：±1% Size：1206
  • TCR：150ppm/℃ Mounting Type：Surface Mount
  • Resistors：1206 Technology：EBW
  • Operating Temperature：-55℃~170℃ Output Voltage：
Product Details

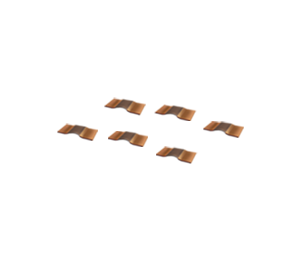

Ⅰ. Product Image

Ⅱ. Features

     2W up to 81A at 0.3 mΩ
     Lead free, RoHs compliant for global applications and halogen free
     Excellent  long term stability
     High current for automotive


Ⅲ. Applications

      Power modules
      Current sensor for power hybrid sources
      Frequency converters
      Current sensor for power hybrid sources
